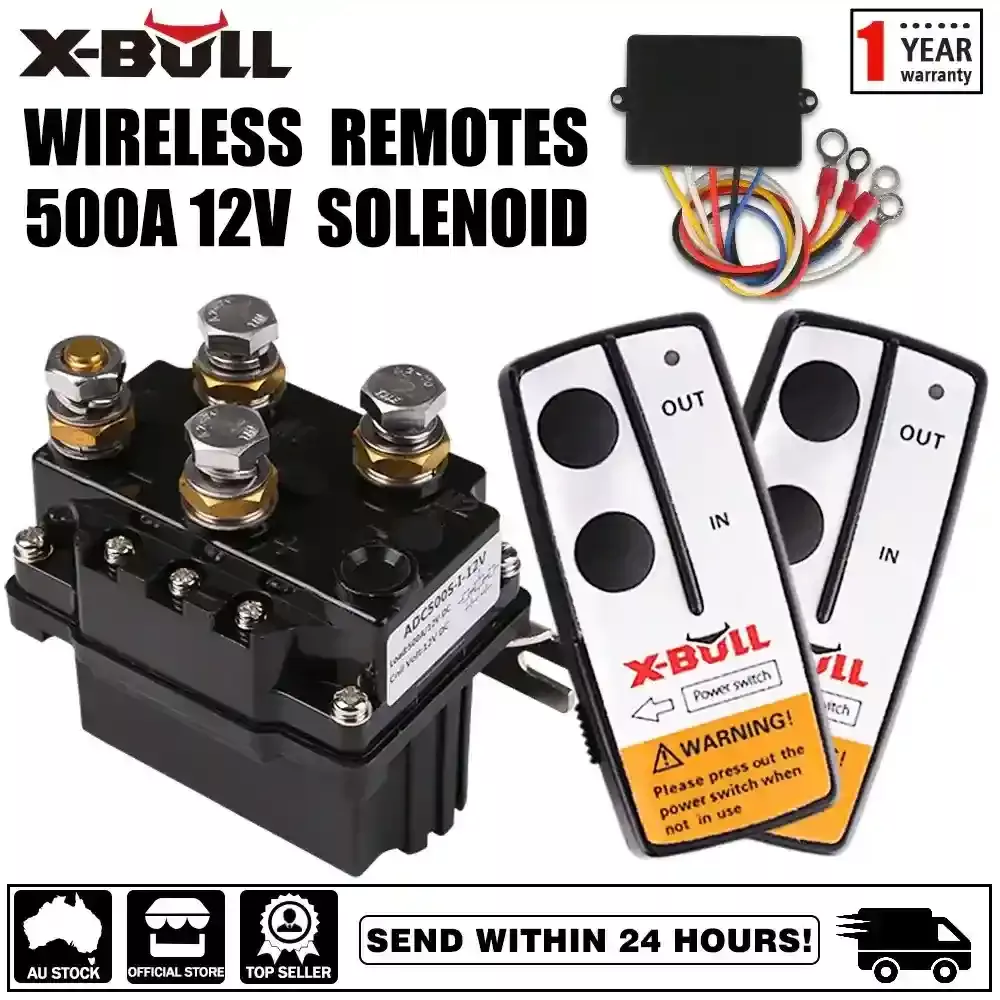

Winch Solenoid Relay 12V 500A Twin Wireless Remote
The Winch Solenoid Relay 12V 500A Twin Wireless Remote is designed for use with 12V solenoid-operated winches. This system includes two wireless remotes, making winch operation more convenient from a distance. It is built for reliable performance with a 500A contactor, suitable for use with winches in the 9500lbs-17000lbs range.
Features:
- Wireless winch remote control with twin handset, compatible with any 12V solenoid-operated winch.
- Latest heavy-duty long-range model.
- Visual indicator light shows remote operation.
- Two remotes included for convenience.
Specifications:
- Distance: about 150ft.
- Remote size: about 45 x 105 mm.
- Receiver size: about 45 x 60 mm.
- Power voltage: 12V.
Package Contents:
- 2 x Remotes.
- 1 x Receiver.
- 1 x User manual and battery included.
Winch 12V Solenoid Control 500A Contactor Twin Wireless Remote Cover Suitable 9500lbs-17000lbs
This 12V winch solenoid relay offers reliable control, designed to withstand harsh conditions. It features a 500A contactor, is sealed for corrosion resistance, and can operate in temperatures ranging from -40°C to 85°C. This system is suitable for winches in the 9500lbs-17000lbs range and includes a wireless remote for ease of use.
Features:
- 500A 12V Winch solenoid for heavy-duty winch applications.
- Sealed and corrosion-resistant design.
- Compatible with wireless remote control.
- Heavy-duty construction for long-lasting performance.
Specifications:
- Coil rated voltage: 6-110V DC.
- Operating power: 15W.
- Contact circuit voltage and loading current: 80V DC Max, 250V AC 500A.
- Mechanical life: 100,000 operations.
- Electrical life: 50,000 operations.
- Operating temperature: -40°C to 85°C.
- Frequency: 10Hz-200Hz.
- Speed: 60-100 per min.
- Operation regulation: Continuous.
- Installation direction: Random.
