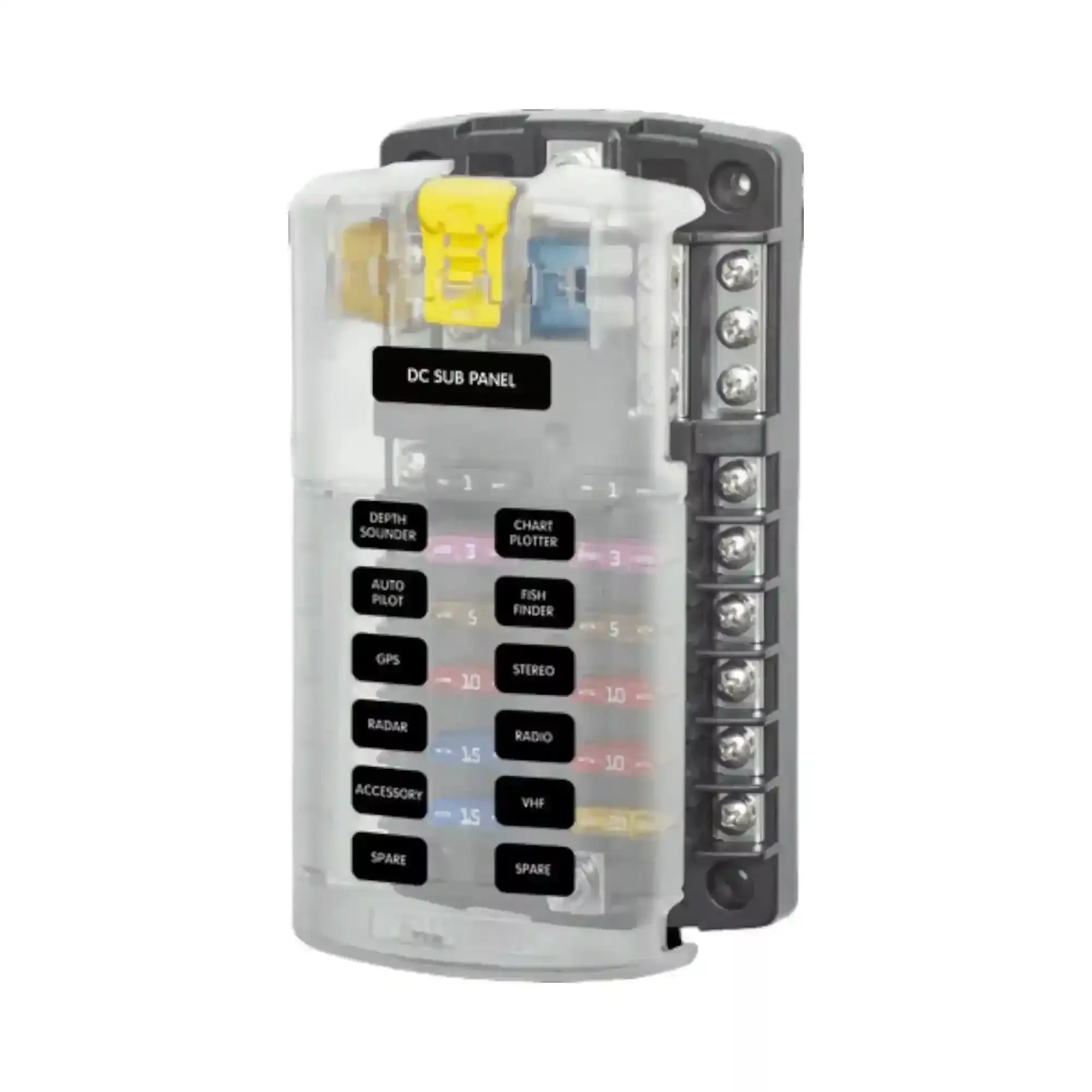

Fuse Block ST Blade Dual 12 Circuit including Negative
| ST Blade Split Bus Fuse Block | |
| Circuits | 12 |
| Maximum Amperage | 30A per circuit |
| 100A total | |
| Maximum Voltage | 32V DC |
| Mounting | 8″ Screw [M4] |
| Negative Bus | 10-32 Stud |
| Recommended Torque | 24 in-lb (2.71 N.m) |
| Screw Terminal Type | 8-32 with Captive Start Lockwasher |
Key Features:
- Provides two isolated groups of six ATO®/ATC® circuits
- For use with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits
- Screw terminals for securing wires accept ring terminals
- One-piece stainless flange nuts ensure safe and secure connections
- Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements
- Easy to open, push button latch for easy access to fuses
- Tin-plated copper buses and fuse clips
- Fuses sold separately
