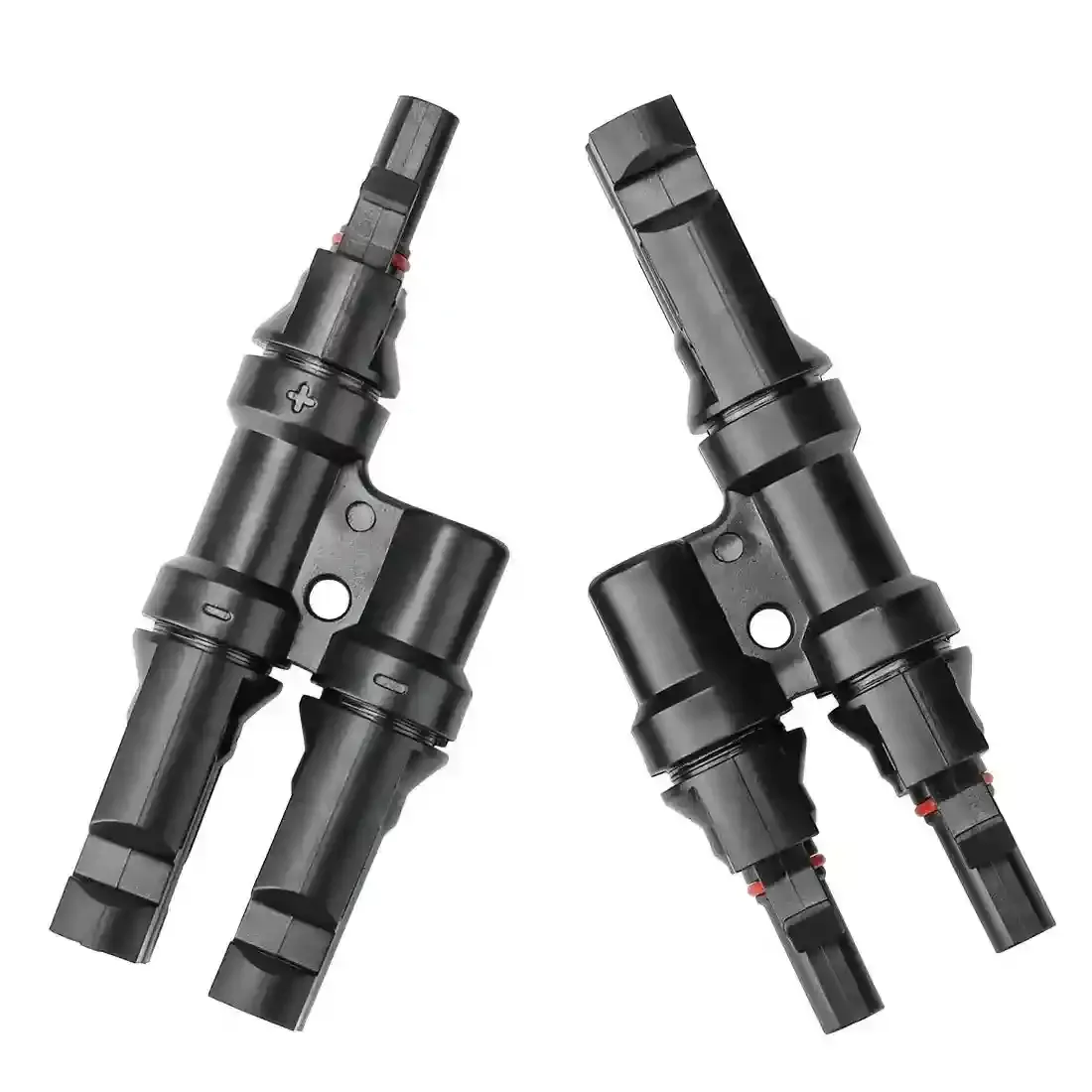

Solar Panel Connector T Branch Cable Connectors – 1 Pair
Solar Panel Connector T Branch Cable Connectors are designed to simplify the paralleling of solar panels. This pair includes 1 male to 2 female (M/FF) and 1 female to 2 male (F/MM) connectors. They are compatible with solar cables or connectors ranging from 14AWG to 10AWG.
Features
- Waterproof and durable: IP67 rated waterproof ring on the male connector keeps out water and dust, preventing corrosion.
- High security: Made from PPO material with silver-plated copper contacts, ensuring stable operation in temperatures from -40°C to +90°C.
- Easy installation: Plug and play design with a built-in lock that allows for easy connection and disconnection without tools.
- Wide applicability: Compatible with 14AWG to 10AWG solar cables, suitable for most PV products on the market.
- Certification: CE and TUV certified, made from hard plastic for added durability.
- Corrosion-resistant: Designed for long-term outdoor use with a self-locking system for secure connections.
Specifications
- Withstanding voltage: 1000V DC (TUV), 600V (UL)
- Contact resistance: 1m
- Protection class: Class II
- Temperature range: -40°C to +90°C
- Flame class: UL94-V0 or UL94-5VA
- Each connector weight: 50g
Package Includes
- 1 Pair of 2 Branch Connectors (1 * MMF Solar Branch Connector, 1 * FFM Solar Branch Connector)
