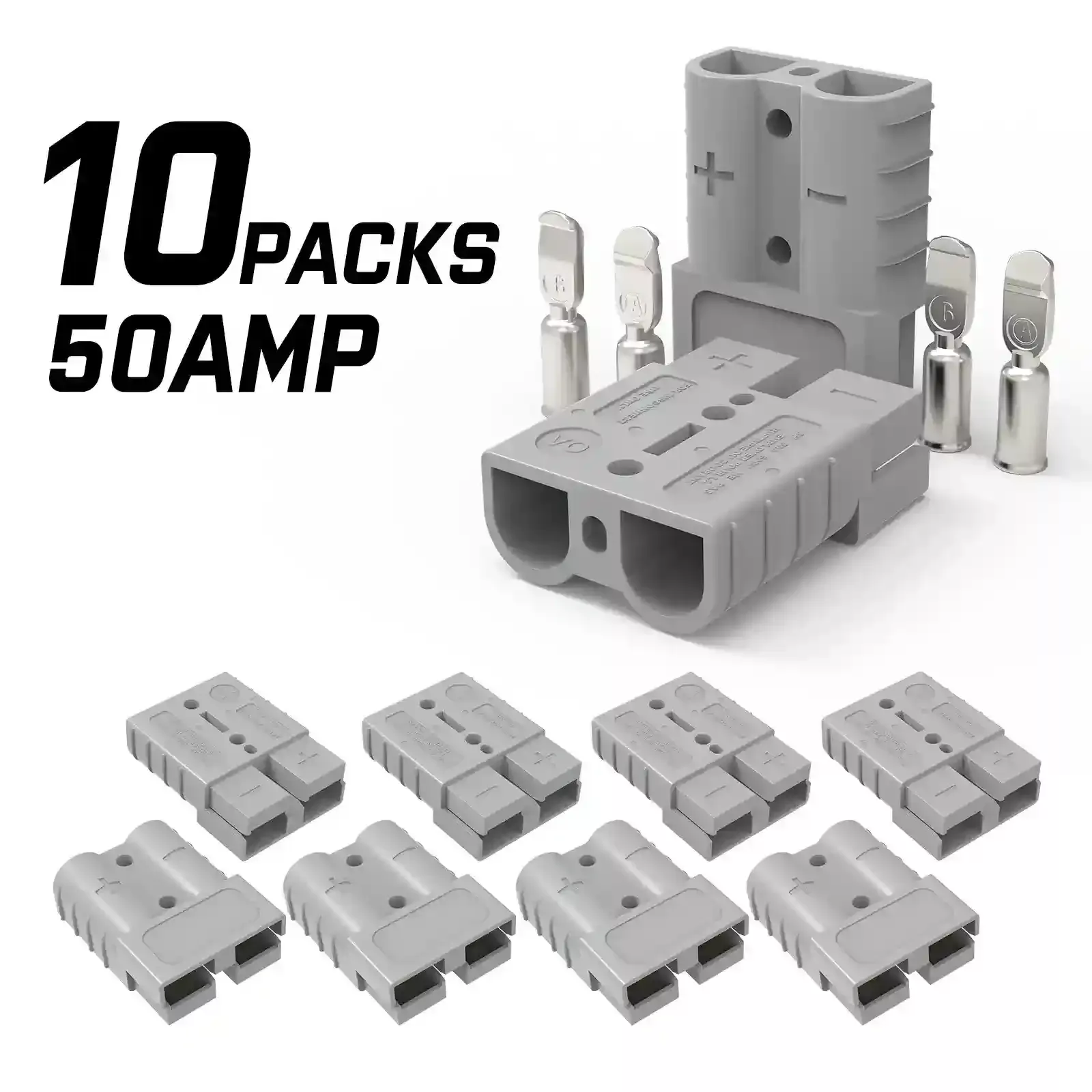

50A Anderson Plug Copper Connectors – 10 Pack
Features:
- Plug made from impact-resistant polycarbonate
- Connector constructed with solid copper and nickel
- Silver-plated terminals for low resistance and stable connection
- Weather-resistant and vibration-resistant design
- Prevents cross-connection; typically used to connect vehicle auxiliary power to trailers
Specifications:
- Rated current: 50A
- Maximum voltage: 600V
- Working voltage: 12V or 24V
- Colour: Grey
- Operating temperature range: -20°C to 105°C
- Cable size: 6BS / 6AWG (maximum 13.3 mm²)
- Life cycle: 10,000 mating cycles
- Fire resistance: PC UL94V-0
- Pressure resistance: 2 tonnes
- Dimensions: 36 x 48.2 x 16 mm
- Weight: 230 g
Package includes:
10 x Anderson plugs with 20 x terminals
Notes:
- Allow slight measurement deviation due to manual measurement
- Colours may vary due to monitor display differences
