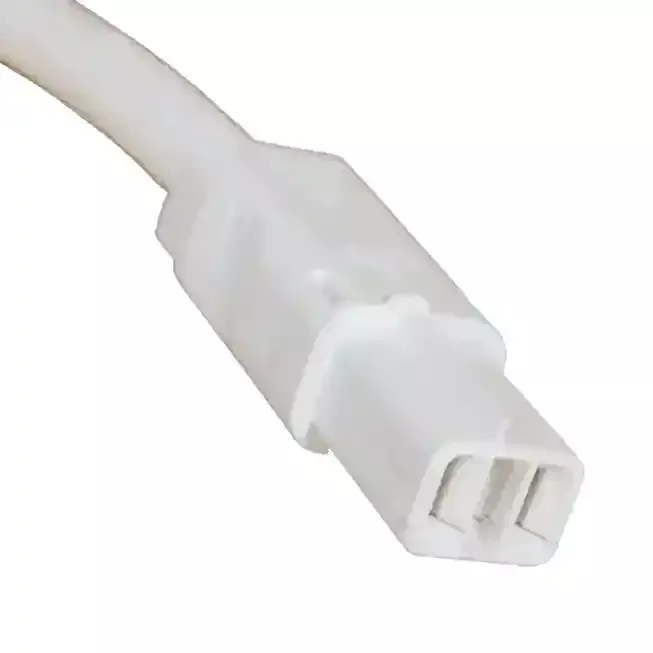

1.5m Connection Lead “C” Style CMS 230VAC Plug N Play
CMS-1.5M-LEAD
Note: This lead does not fit Jayco “J” type connectors. Check compatibility before retrofitting.
Features:
- Length: 1.5 metres connection lead
- Connector Type: “C” Style plug compatible with CMS 230VAC systems
- Voltage: Suitable for 230V AC supply
- Installation: Plug and play design for easy fitment in caravans, motorhomes, 4WD canopies, and commercial vehicles
- Safety: Requires a 16A circuit breaker or RCD on each circuit
- Standards: Complies with Australian and New Zealand safety standards AS/NZ 3112, AS/NZ 61535.1, and AS/NZ 3000
- Design: Sealed male and female ends to prevent misconnection; includes security clips to maintain secure connections
- Space Requirements: Power points require 32mm recess depth; mounting blocks available if recess not possible
- System Setup: Designed for daisy chain connection of multiple power points with options for external outlets
- Compatibility: DIY-friendly for installation by vehicle builders, reducing electrician onsite time
- Cabling: Outer sheath protection; allow extra cable length for fitting and future replacements through vehicle framing
Usage Notes: This lead is for “C” type connections only and will not work with “J” type connectors found on some Jayco models. For system build, connect the CMS Power Inlet via a 16A circuit breaker then link sequential power points. The last power point remains with outlet unused or can be extended to an external outlet.
